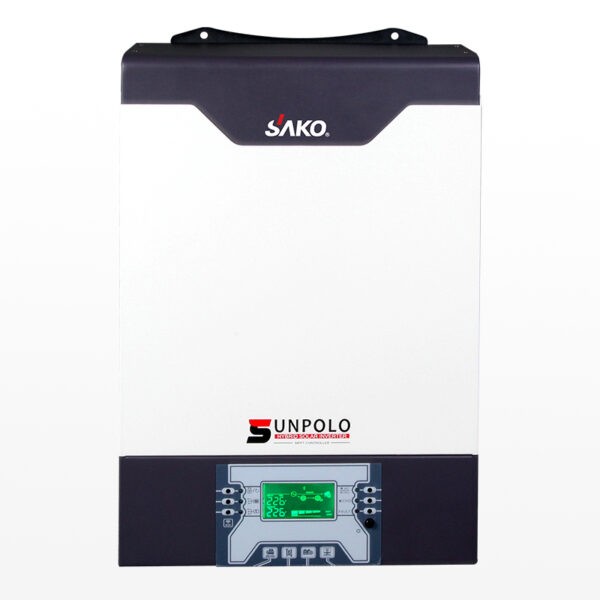

SAKO SUNPOLO 5kW Solar inverter

Top Selling Products

Description reviews

Description

TECHNICAL PARAMETER

MODEL	SUNPOLO-3K
Rated Power	3KW
INPUT
Voltage	230VAC
Voltage Range	176-280 VAC at 100% load
Voltage Range	110-280 VAC at 50% load
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±3%
Surge Power	6400VA for 5 sec
Efficiency(Peak)	>95% ( Rated R load, battery full charged
Transfer Time	10ms typical (UPS)
Transfer Time	20ms typical (Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC
Floating Charge Voltage	27VDC
Overcharge Protection	32VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Open Circuit Voltage	450VDC
Maximum PV Array Power	4000W
MPP Range@ Operating Voltage	120-430VDC
Maximum Solar Charge Current	80A
Maximum AC Charge Current	80A
PHYSICAL
Dimension,D X W X H (mm)	492303129
Net Weight(kgs)	9.5
Communication Interface	Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface,
Communication Interface	9PCS IN PARALLEL(ONLY 5KW)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-15℃ to 60℃
