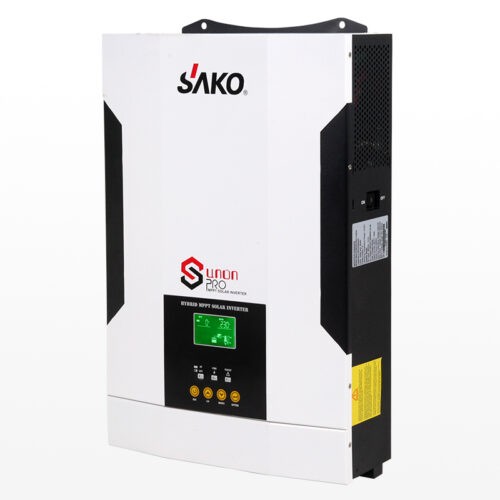

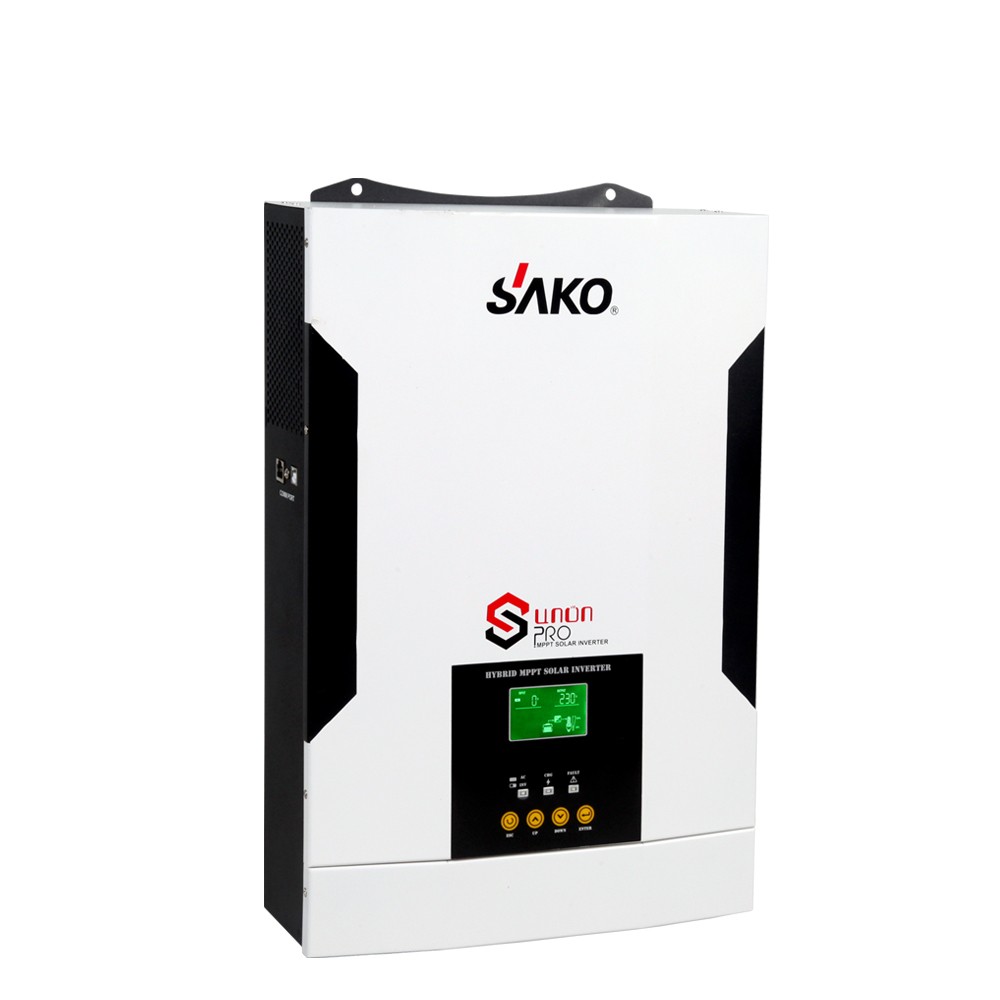

SUNONPro 3.5kW Off Grid Hybrid Inverter

Model

SUNON PRO 3.5K

The rated power

3500VA/3500W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC (UPS),90-280VAC (Appliances)

Frequnecy Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Model)

230VAC ± 5%

Surge Power

7000VA

Power factor

1

Efficiency(Peak)

> 90%

Transfer Time

10ms (UPS), 20ms (Appliances)

Wave form

Pure sine wave

No load current

1.0A

BATTERY

Battery voltage

24VDC

Low battery alarming voltage

22.0VDC

Low battery cut off protection voltage

21VDC

Low battery recovery voltage

23.0VDC

Floating Charge Voltage

27VDC

Overcharge Protection

32VDC

MPPT SOLAR CHARGER & AC CHARGER

Maximum PV Array Power

5000W

MPPT Range Operation Vol

120-450VDC

Maximum PV Array Open Circuit Vol.

500VDC

Number of MPPT trackers / Max output current

100A

Maxmum AC Charge Current

60A

Maxmum Charge Current

100A

Maxmum Efficiency

98%

BEST PANEL CONFIGUTATION

Maximum PV Array Power

5000W

Best Panel configuration

300Wp*9pcs*36V(2700Wp)*2Parallel

PHYSICAL

Products Dimension, D*W*H(mm)

481mm*313mm*117mm

Packing size, D*W*H(mm)

543mm*394mm*204mm

Net Weight (kgs)

9.8Kg

G.W. kg

11.2Kg

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operation Temperature

0℃-50℃
